New Solar Roof Panel

The patented New Solar Roof Panel developed by SY can reduce the construction period by 90% and construction costs by using a snap method utilizing clamps and a bolt tightening method for solar light modules, and it is possible to prevent leakage perfectly with a non-punching method which does not use silicone sealant.

Features of Product

Perfect leakage prevention

Constructibility and compatibility

Optimal economic feasibility

Product Information

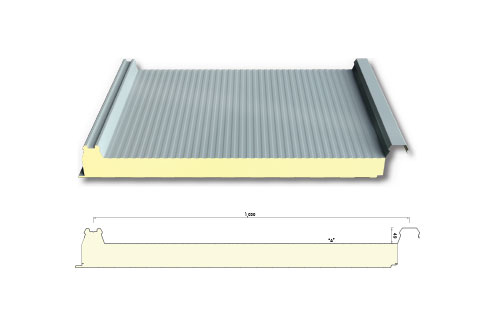

Product Image

Features of Product

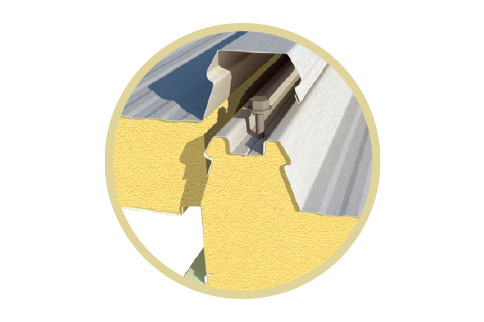

Perfect leakage prevention

It is a boltless type and can prevent creation of slot holes fundamentally unlike a conventional type with a punching method and prevention of leakage is perfect.

Optimal economic feasibility

It is possible to install it without separate construction of base frames and general construction costs cam be reduced by more than 30%.

Constructibility and compatibility

Upon fixing solar light modules, the construction period can be reduced by 90% compared to the existing method by a snap method and a bolt tightening method, not a punching method, and the optimal power generation efficiency such as azimuth and altitude of photovoltaic modules is provided.
Patent
The New Solar Roof Panel of SY is a patented(#10-1498551 / #10-1498554) tightening device and mounting structure and provides convenience and stability of construction.
- Patented #10-1498551
- Patented #10-1498554
Structural stability test

Pullout force 390㎏/1 clamp

Wind pressure stability test

Wind tunnel experiment 50m/s

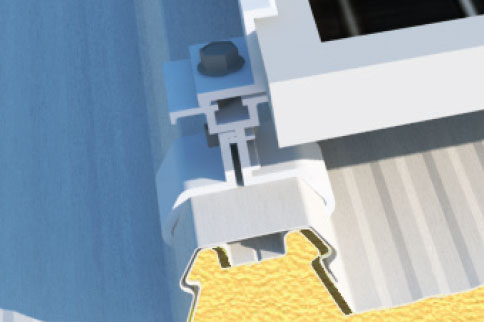

Combination Structure

1

2

3

4

5

6
Installation Type
Attached

Sloped A

Sloped B
Specification

Classification	Specification
Surface material for Both Sides	External	0.45~0.6mm PPGI (PVDF/Polyester)
Surface material for Both Sides	Internal	0.45~0.5mm GI
Insulator	PUR, PIR (35~45kg/㎥)
width	2m~17.5m
Production Length	1,000mm
Production thickness	50, 75, 100, 125, 150mm
